DESCRIPTION |
|
Dump truck for underground mining FT12 is a 12 ton payload mining truck that can work with Underground LHD loader loaders FL04 for underground loading and hauling jobs. Underground dump truck FT12 applies side face drive to maximize good vision ability in tunnels. It has compact dimension and turning radius, large dumping angle. Equipped with DEUTZ Engine F8L413FW of rated power 136 kW, it chooses international brand for all key components to meet various challenges in underground mining. In fact, FT12 payload is 15 ton which means more power enduring ability and lifespan. |
DESCRIPTION |
|
Underground mining dump truck FT15 is 15 ton payload mining truck, front facing drive that is comfortable for long distance travel. It has a compact dimension and turning radius, large dumping angel. With a DEUTZ Engine F8L413FW rated power 136 Kw, it’s also equipped with international brand components to meet various challenges in underground mining. |
DESCRIPTION |
|
Underground Dump Truck FT20 underground mining truck has a rated payload of 20 ton, standard with fully enclosed forward-facing cabin with AC, which has wide visual field and comfort for driver.the whole vehicle control system adopts CAN-bus communication technology,Fambition Electronic Technician, electro-hydraulic proportional pilot control and variable hydraulic system. The control system is designed on the basis of CAN-bus. The on-board display screen can display the operating parameters of the scraper in real time, and has the functions of fault warning and self-diagnosis. The truck adopts Cummins water-cooled EFI engine to meet Euro IIIB emission standards, and other parts adopt internationally well-known brands to meet the tough conditions and climbing requirements for underground. Lincoln auto lubrication system and Ansul auto fire suppression system are optional. |
DESCRIPTION |
|
Underground dump truck FT30 underground mining truck has a rated payload of 30 ton, standard with fully enclosed forward-facing cabin with AC, which has wide visual field and comfort for driver. the whole vehicle control system adopts CAN-bus communication technology,Fambition Electronic Technician, electro-hydraulic proportional pilot control and variable hydraulic system. The control system is designed on the basis of CAN-bus. The on-board display screen can display the operating parameters of the scraper in real time, and has the functions of fault warning and self-diagnosis.The truck adopts Volvo water-cooled EFI engine to meet Euro IIIB emission standards, and other parts adopt internationally well-known brands to meet the tough conditions and climbing requirements for underground. Lincoln auto lubrication system and Ansul auto fire suppression system are optional. |
DESCRIPTION |
|
FL18 is a diesel LHD with a load capacity of 18 tons specially designed for large underground metal mines, suitable for drift size above 5m*5m All key components are international well-known brands, the vehicle adopts hydraulic pilot control and EHC variable hydraulic system. The control system based on CAN-bus technology, Fambition Electronic Technician,with on board display to show real time operating parameters with self-diagnostic and troubleshooting. Standard visual remote control system, auto lubrication system and Ansul auto fire suppression system are optional for the loader. |
DESCRIPTION |
|
FL07E is a 7-ton electric LHD designed for medium-sized underground metal mines. FL07E equipped with horizontal reel system that enables the LHD pass the junction box without a U-Turn. It makes driving simple and flexible. The power cabinet on the LHD can protect the personnel and equipment from all electric danger. The towing system allows the LHD to move easily and safely. The FL07E LHD is equipped with an electro-hydraulic controlled variable hydraulic system, and a constant tension induction automatic control cable-reel system. The on-board display screen can display the operating parameters of the LHD in real time and has a self-diagnosis function. Equipped with standard visible radio remote control system, options are automatic centralized lubrication system and Ansul centralized fire protection system. |
DESCRIPTION |
|
The underground loader is mainly used for ore transportation in mines, narrow tunnels and tunnel construction. This article mainly introduces the power system, transmission system, walking system, braking system, steering system of underground loader, composition, structure, working principle, design and common fault elimination of devices working, hydraulic systems and electrical systems; introduces the automation of underground chargers, calculation of the main technical parameters and performance tests. |
DESCRIPTION |
|
underground scooptram FL14E is an electric LHD designed for large scale underground metal mines production payload 14 mt. FL14E has a horizontal cable reeling system that enables the loader to pass power supply box without turning and can travel flexibly. The electric cabinet could protect personnel and equipment from all electricity danger. Trailing system gives an easier transfer between different stopes. FL14E has an EHC variable hydraulic system and constant tension sensing cable-reel control system. The real time operating parameters and state can showed on board, including self-diagnostics. Standard stadia remote control system, auto lubrication system and Ansul auto fire suppression system are optional for the loader. FL14E is an optimized load-haul solution to large scale mining |
DESCRIPTION |
|
Underground Mining scooptram loaders FL14 is a diesel engine underground LHD scooptram loaders designed for large scale underground metal mines production, payload 14 mt. All key components are international well-known brands, the vehicle adopts hydraulic pilot control and EHC variable hydraulic system. The control system based on CAN-bus technology, Fambition Electronic Technician,with on board display to show real time operating parameters with self-diagnostic and troubleshooting. Standard visual remote control system, auto lubrication system and Ansul auto fire suppression system are optional for the loader. |
DESCRIPTION |
|

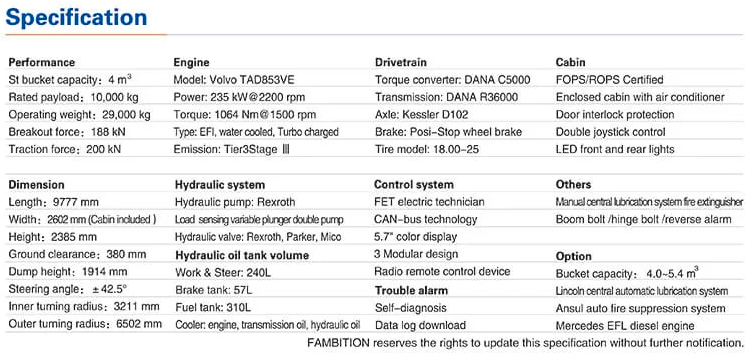

Underground LHD scooptram loaders FL10 is a diesel engine Underground Mining load haul dumper designed for large scale underground metal mines production, payload 10 mt. All key components are international well-known brands, the vehicle adopts hydraulic pilot control and EHC variable hydraulic system. The control system based on CAN-bus technology,Fambition Electronic Technician, with on board display to show real time operating parameters with self-diagnostic and troubleshooting. Standard visual remote control system, auto lubrication system and Ansul auto fire suppression system are optional for the loader. The design and manufacturing of FL10 is in the first class of the industry, higher production capability, lower downtime and lower operating cost. |
DESCRIPTION |
|
Underground LHD Loader unit FL07 is a 7-ton diesel LHD designed for medium underground metal mines. The main parts of FL07 use international famous brand, the whole vehicle control system adopts CAN-bus communication technology,Fambition Electronic Technician, electro-hydraulic proportional pilot control and variable hydraulic system. The control system is designed on the basis of CAN-bus. The on-board display screen can display the operating parameters of the scraper in real time, and has the functions of fault warning and self-diagnosis. Optional automatic central lubrication system and Ansul automatic fire extinguishing system. The design and manufacture of Underground Mining load haul dumper FL07 have reached the advanced level of the industry, the production capacity is high, the failure rate is low, the use cost is low. |
DESCRIPTION |
|
Underground scooptram loaders FL06 is a 6-ton diesel underground LHD load haul dumper designed for medium and small underground metal mines. The main parts of FL06 underground LHD load haul dumper adopt the high configuration of international famous brand and hydraulic pilot control. The boom adopts the box structure of high strength and light weight, accompanied by Z-link mechanism that enables fast loading, The frame adopts advanced integral processing technology, which makes the service life of the equipment longer, and FL06 can be matched with central lubrication system and Ansul auto fire suppression system. |
DESCRIPTION |
|

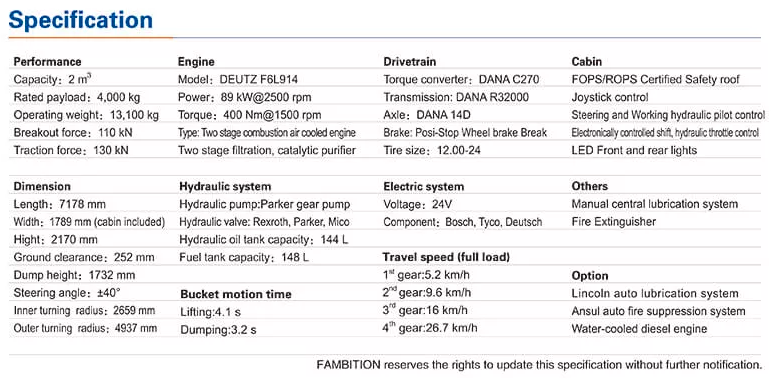

Underground Mining load haul dumperFL04 is a 4 ton diesel Underground Mining load haul dumper specially designed for small underground metal mines. It has a compact structure and smaller turning radius, especially suitable for narrow roadways. Underground Mining load haul dumper FL04 is equipped with a 89kW Deutz F6L914 engine, which has strong power, strong Breakout force and low failure rate due to high power reserve. Steering operation control adopts hydraulic handle, convenient and comfortable operation. The braking system adopts Posi-Stop spring brake and hydraulic release brake, and the safety is better. The FL04 highland type LHD is equipped with Deutz BF6L914 engine with power of 112 kW. The power of the engine is 71.5 kW at an altitude of 4500 meters, which meets the requirements of high altitude operation. |
DESCRIPTION |
|
FET02 is a blasting equipment and explosive transport vehicle specially designed for underground mines and can carry up to 2.5 tons load. The transport vehicle adopts an articulated front and rear frame, steering with a steering gear, and a small turning radius, which is suitable for underground roadway operation. The cab is designed in accordance with ISO ROPS/FOPS certification standards to ensure the safety of personnel. The control system is based on CAN-bus bus design, Fet electronic technicians, the on-board display screen can display the operating parameters in real time, and has the functions of fault warning and self-diagnosis. |
DESCRIPTION |
|
FDT05 is a fuel transporting vehicle specially designed for underground mines, Max payload 6000L. The front and rear frame adopts articulated connection. FDT05 is steered by a steering gear with a small turning radius, which is suitable for underground roadway operation. The driver cabin is certificated by FOPS/ROPS that ensures the safety of personnel. The control system is based on CAN-bus bus design, FET electronic technicians, the on-board display screen can display the operating parameters in real time, and FDT05 has the functions of fault warning and self-diagnosis. |
DESCRIPTION |
|
FDT03 is a fuel transport vehicle specially designed for underground mines and can carry up to 3500L. The transport vehicle adopts an articulated front and rear frame, steering with a steering gear, and a small turning radius, which is suitable for underground roadway operation. The cabin is designed in accordance with ISO ROPS/FOPS certification standards to ensure the safety of personnel. The control system is based on CAN-bus bus design, FET electronic technicians, the on-board display screen can display the operating parameters in real time, and has the functions of fault warning and self-diagnosis. |
DESCRIPTION |
|

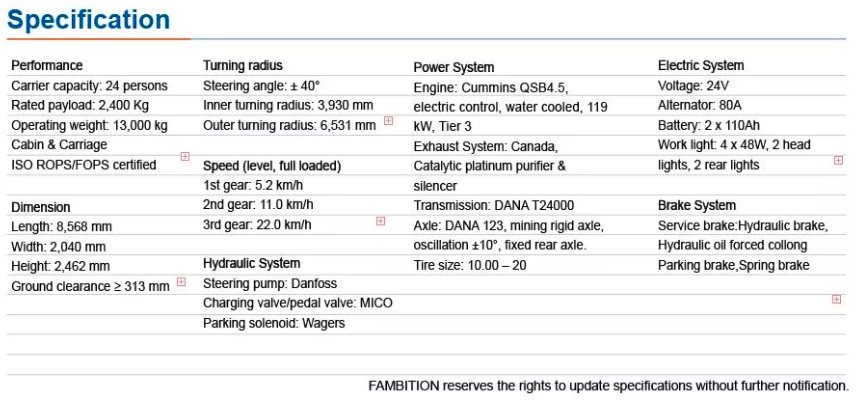

FPT24 is a personnel carrier for underground mine with capacity of 24 persons. It applies central articulation design, steering gear, small turning radius, and good for underground travel. Both cabin and carrier are ISO ROPS/FOPS certified for safety. The rear frame is equipped with oil and gas spring suspension, and the passenger cabin is equipped with rubber shock absorption to improve the comfort of the whole vehicle. The electrical control system is designed based on the CAN-bus, and the FET electronic technician and on-board display screen can display the operating parameters in real time, and have the functions of fault prompt alarm and self-diagnosis. |
DESCRIPTION |
|

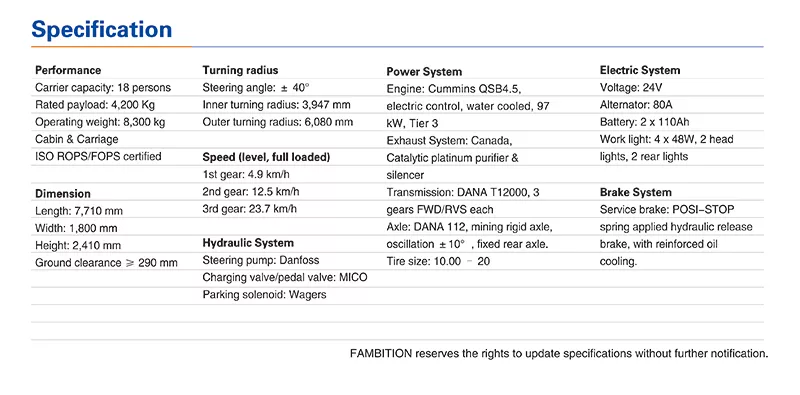

Underground Man Carrier FPT18 is specially design man carrier for underground mining, max. capacity 18 persons. It applies central articulated deign with assistance of a steering device for small turning radius and tunnel travel. Cabin and carriage are ISO and FOPS/ROPS certified to guarantee safety. the whole vehicle control system adopts CAN-bus communication technology,Fambition Electronic Technician, electro-hydraulic proportional pilot control and variable hydraulic system. The control system is designed on the basis of CAN-bus. The on-board display screen can display the operating parameters of the scraper in real time, and has the functions of fault warning and self-diagnosis. |
DESCRIPTION |
|
The miniLoader L110E, is specially designed for underground mining works in narrow section and narrow vein mining. With a width of 0,88 m and a tramming capacity of one tonne, the L110 is ideal to raise your productivity without the need of increasing your gallery sections. Its modern transmission and components result in a high reliability with simple maintenance and fully safe operation. |
DESCRIPTION |
|
Leader in mining and underground solutions |
DESCRIPTION |
|
The miniLoader L130E, is specially designed for underground mining works in narrow section and narrow vein mining. With a width of 1.046 m and a tramming capacity of one tonne, the L130 is ideal to raise your productivity without the need of increasing your gallery sections. |
DESCRIPTION |
|
PROVEN AND RELIABLE HIGH TECHNOLOGY The L140B, especially thought for narrow vein mines, is designed with the best components from recognized brands. The machine doesn’t need maintenance; without hydrostatics, with a simplified electrical transmission and a low heating, it has a longer lifetime |
DESCRIPTION |
|
The miniLoader L150D, is specially designed for underground mining works in narrow section and narrow vein mining. With a width of 1.205 to 1.290 m and a tramming capacity of 1.4 tonnes, the L150 is ideal to raise your productivity without the need of increasing your gallery sections. Its modern transmission and components result in a high reliability with simple maintenance and fully safe operation. The chassis and articulations are designed for the toughest application, in order to allow a high availability with a longer life time. The operator’s compartment is side seated to comply perfectly with the underground requirements, with smooth and ergonomically located joysticks to offer comfort and safety to the operator and maintenance personnel. The electric version of the miniLoader L150 fitted with a simple and robust cable reel designed for tramming and equipped with an automatic cable tension system, allows the utilization of the miniLoader with less noise and low ventilation. |
DESCRIPTION |
|
EXTRA CAPACITY ELECTRIC LOADER The miniLoader® L150XE has been designed to offer a comfortable and pure environment to the driver and the miners around. The electric power brings less noise and no CO 2 emission in the working environment while the extra capacity increase your productivity. |
DESCRIPTION |
|
Next generation of underground mining loader, the L350D is the only machine of its category available with an enclosed cabin offering an enjoyable journey in our tough underground environment. The very robust frame design and system combination makes it the most productive and effective loader to increase safely your productivity in narrow vein mines. Safety at each level : From the spring brake applied in each wheel to the escape window in the cabin, the L350D was designed to protect not only its operator, but all person around it, and the facts are : • ISO ROPS/FOPS approved open or enclosed cabin • Steering and Boom-up locking device. Audio-visual reverse alarm. Easy and anti-skid access. Emergency stop • Automation ready Canbus System Productivity at a high rate : We have achieved an incomparable “size to capacity“ ratio, to carry more in smaller gallery sections. As a leader in mining equipment for narrow vein mines, Aramine has the greatest expertise and understanding of the needs of this market. Ergonomics has finally changed era: The unique cabin design and the unmatched stability make you feel you’re on board a large size loader, in term of comfort and security. Now available for narrow vein mines ! Great working solution for increasing productivity. Durability as a philosophy: Strong newly designed frame guarantees long life, easy maintenance and remanufacturing. • Hydraulic systems with total suction and return filtration • Oversized central articulation designed with conical bearing • Parallel bucket design with stabilizer link insure high dumping angle with less articulations • Penetrating bucket design and powertrain force offer fast and efficient mucking |
DESCRIPTION |
|
A SIMPLE AND RELIABLE DUMP TRUCK With its four wheel drive, heavy duty articulated frame and oscillating axle, the T500D will smoothy carry your load in toughest road condition and short turning radius of undergound narrow vein mines. Indeed, this dumptruck is capable to carry three times the capacity of the L130D/E miniLoader at a highest speed. |
DESCRIPTION |
|
Developed for small to medium scale underground operations, the Mine-Truck 1801C is ideal for sections between 10 to 16m 2 |
DESCRIPTION |
|
A SIMPLE AND RELIABLE MINIDRILLER The DM901 HDE is a Front face drilling rig, driven by a Diesel engine and drilling by an Electric powerpack with a cable reel. |
DESCRIPTION |
|
G35 DTH - Crawler Drill (Also Known as Equipo de Perforación Neumático in Spanish)
|
DESCRIPTION |
|
A TH (Top Hammer) G35 TH - Crawler Drill drill (Also Known as Equipo de Perforación Neumático in Spanish) is another type of drilling machine used for mining and construction purposes. It is designed to drill holes in hard rock formations and is commonly used for blasting operations, ground support installation, and exploration drilling. Unlike a DTH crawler drill, a G35 TH crawler drill uses a top hammer that strikes the drill bit from above to penetrate the rock surface. The drill bit is rotated by a hydraulic motor, and the entire machine is mounted on a tracked undercarriage that can navigate through difficult terrain. This crawler drill is known for its versatility, durability, and high drilling speed, making it a popular choice in the mining and construction industries. |
DESCRIPTION |
|
DTH (Down-the-Hole) G40 DTH - Crawler Drill (Also Known as Equipo de Perforación Neumático in Spanish) is a powerful drilling machine designed to penetrate hard rock and other challenging geological formations. It is commonly used in the mining, construction, and exploration industries to extract valuable resources and create tunnels or boreholes. The DTH crawler drill uses compressed air to power a down-the-hole hammer that drives a drill bit deep into the ground. Its tracked undercarriage allows it to traverse rough terrain and climb steep slopes, making it an ideal choice for remote or difficult-to-access locations. With its high drilling speed and efficiency, the DTH crawler drill has become an indispensable tool for many industries that rely on drilling operations. |
DESCRIPTION |
|
TH (Top Hammer) G40 TH - Crawler Drill (Also Known as Equipo de Perforación Neumático in Spanish) is a versatile and efficient drilling machine that is widely used in the construction, mining, and quarrying industries. Unlike a DTH crawler drill that uses compressed air to drive a down-the-hole hammer, a TH crawler drill employs a top hammer drilling method that delivers high-precision drilling and faster penetration rates. The TH crawler drill utilizes a hydraulic system to power a drill string that is equipped with a drill bit and a percussion mechanism, which strikes the rock surface repeatedly to break it up. The crawler tracks enable the drill to move easily across rough terrain and steep inclines, allowing it to access remote locations. With its speed, accuracy, and mobility, the TH crawler drill is a popular choice for drilling in a wide range of applications, from foundation work to exploration drilling. |
DESCRIPTION |
|
The G250 jackleg Drill (also known as "perforadora jackleg" in Spanish) (Equivalent to S250 jackleg Drill) has always been the top choice for miners demanding high performance, exceptional control, and long-lasting reliability. The S250 jackleg Drill allows operators to drill in confined spaces at challenging orientations while delivering high penetration rate and strong torque even at low air pressure. The pusher leg controls are integrated into the drill backhead for maximum safety and comfort. The jackleg has large contact areas between major cylinder components to reduce impact pressure and increase product life. Benefits
|
DESCRIPTION |
|
The G16W Jackleg Drill (also known as "perforadora jackleg" in Spanish) (Equivalent to Atlas Copco BBC 16W) jackleg drill is a mounted rock drills designed for driving drifts and tunnels with a small cross section. This well-proven rock drill is recognized for its high performance and reliability. It can be easy handled while collaring due to the location of the single air inlet, located at the same side as the main control. The pusher leg control is located on the jackleg drill backhead. The jackleg drill can be used for hole diameter range of 27 – 41 mm with H22 rotation chuck. It has a robust rifle bar rotation with large sliding surfaces, increasing its durability. All-round rock drill which suits most drilling applications. It has a robust rifle bar rotation with large sliding surfaces just like Atlas Copco BBC 16W, which has contributed to its reputation as a durable dependable drill. Benefits
|
DESCRIPTION |
|
The G94W Jackleg Drill (also known as "perforadora jackleg" in Spanish) (Equivalent to Atlas Copco BBD 94W) is an all-rounder with short stroke and high impact rate which makes it especially effective in soft rock applications. The pusher leg controls are integrated into the drill backhead for convenient operation. The G94W jackleg drill is mainly used to drive drifts and tunnels with small cross sections and a hole diameter range of 27-41 mm Benefits
|
DESCRIPTION |
|
The G83F jackleg drill (also known as "perforadora jackleg" in Spanish) is the most popular jackleg drill in all of Mexico and USA. It’s a favorite amongst both managers and operators due to extremely low maintenance costs, easy operation, high penetration rate, and robust construction. The water-flushed G83F jackleg drill is versatile with a variety of applications and can also be used as a sinker drill. It is offered with a 7/8” or 1” chuck with a variety of feed legs to adapt the drill according to your needs. Benefits
|
DESCRIPTION |
|
The G656W jackleg drill (also known as "perforadora jackleg" in Spanish) (Equivalent to RH 656 4W Atlas Copco) is specially designated for small cross-sectional drilling. This water-flushed jackleg drill is a spot-on match for driving drifts and tunnels. The pusher leg controls are placed on the drill backhead. It can also be used as a sinker drill due to its low weight and T-handle. This drill can be used on soft rocks up to medium hard rocks. The G656W jackleg drill offers high penetration, robust rifle-bar rotation mechanism, and low air consumption. It has a robust kick-latch retainer for fast and convenient tool change. Benefits
|
DESCRIPTION |
|
The GP755A pusher leg (also known as "Empujador Perforadora" in Spanish) is specially designed for the G250 jackleg drill. It has a balanced weight distribution for easy operator control. The pusher leg controls are integrated into the G250 drill backhead with push button jackleg retraction. Benefits
|
DESCRIPTION |
|
The GP51 Pusher Leg (also known as "Empujador Perforadora" in Spanish) is a versatile double-action pusher leg made with aluminium alloys developed for use in spacecraft. Its simple yet robust design makes it easy to use and maintain. The simple design also makes it quick & easy to attach and detach from the jackleg drill. The feed control is conveniently placed on the pusher leg. Its double-action mechanism allows operators to use pneumatic power to both push out and pull in the jackleg attachment. It is specially designed for use with the G16W jackleg drill. Benefits
|
DESCRIPTION |
|
The GP72D pusher leg (also known as "Empujador Perforadora" in Spanish) (Equivalent to ALF72D Atlas Copco Pusher Leg) is lightweight and durable, made from aluminum alloys developed for spacecraft. Designed especially for the G94W jackleg drill, the GP72D pusher leg comes in two variants, GP72D (1300mm feed length) and GP72D-1 (1200mm feed length). Its double-action mechanism allows operators to push the jackleg drill out and pull it back in. The simple and robust design ensures a quick connection to minimize operation time and maintenance costs. Benefits
|
DESCRIPTION |
|
The GP72D1 pusher leg (also known as "Empujador Perforadora" in Spanish) is lightweight and durable, made from aluminum alloys developed for spacecrafts. Designed specially for G94W jackleg drill, the GP72D pusher leg comes in two variants, GP72D (1300mm feed length) and GP72D-1 (1200mm feed length). Its double-action mechanism allows operators to push the jackleg drill out and pull it back in. The simple and robust design ensures a quick connection to minimize operation time and maintenance costs. Benefits
|
DESCRIPTION |
|
The GP62K pusher leg (also known as "Empujador Perforadora" in Spanish) is a simple yet robust pusher leg designed specially for the G656W jackleg drill. Made with aluminum alloys first developed for use in aircrafts, the GP62K pusher leg has a large piston diameter to reduce pressure on contacting parts and increase pusher leg life. The feed controls are placed conveniently on the pusher leg for operator comfort. Benefits
|
DESCRIPTION |
|
The GT250 Stoper Drill (also known as "Perforadora Stoper" in Spanish) (Equivalent to Boart Longyear S250 Stoper Drill) has always been the top choice for miners demanding high performance, exceptional control, and long-lasting reliability. The GT250 stoper drill allows operators to drill vertically upwards while delivering a high penetration rate and strong torque even at low air pressure. The stoper leg has a push button to retract the stoper leg and an adjustable motorcycle feed. The stoper has large contact areas between major cylinder components to reduce impact pressure and increase product life. Benefits
|
DESCRIPTION |
|
The GS658L sinker drill (also known as "Perforadora Sinker" in Spanish) (Equivalent to Atlas Copco RH 658L Sinker Drill) is the market leader in India and Brazil. It is a low-cost pneumatic jackhammer, well known for its high return on investment and comfort due to hand-held Pneumatic rock drill. The GS658L is tailor-made to drill through hard-faced rock, granite, and others for bench drilling, quarry drilling, and secondary holes for blasting. The risk of drill jamming is reduced by built-in air flushing which removes drill chips. Fast and convenient tool change is performed with the help of a robust kick-latch retainer. The GS658L sinker drill also has an optional handle bracket and footrest for increased operator comfort. Benefits
|
DESCRIPTION |
|
The GME GS0032A Sinker Drill (also known as "Perforadora Sinker" in Spanish) (Equivalent to CP 32A Sinker Drill) is the go-to pneumatic drill for various kinds of drilling operations. It has very low spare parts consumption as it has one of the largest piston diameters in class. The drill also consists of an advanced integral oiler lubrication system. The CP 32A Sinker Drill has a very low overall running cost with minimal air consumption. The operator’s ease of use is enhanced with the help of combined blower and throttle lever, and T-handle. High penetration rate over an extensive time period is assured due to a streamlined design and robust construction quality, keeping the maintenance cost to a minimum at the same time. Benefits
|
DESCRIPTION |
|
The GS0032AFR Sinker Drill (also known as "Perforadora Sinker" in Spanish) (Equivalent to CP 32AFR Sinker Drill) – The Foot Rest Sinker Drill is specially designed for high production in dimensional stone industry to be operated by two operators to get the targeted work done in each shift. Benefits
|
DESCRIPTION |
|
The GME GBD12D Sinker Rock Drill (also known as "Perforadora Sinker" in Spanish) (Equivalent to BBD 12D Atlas Copco Rock Drill) is a 20-lb class lightweight handheld pneumatic rock drill specially designed to be the top choice when portability is key. It comes with a D-type handle for easy horizontal drilling in tight spaces. It has a high impact rate of 2580 BPM and a high penetration rate. It is ideal for horizontal drilling, anchor drilling, wedge drilling, plug-hole drilling, and drilling in concrete.
|
DESCRIPTION |
|
The GME GS571L Sinker Drill (also known as "Perforadora Sinker" in Spanish) (Equivalent to Atlas Copco RH 571 5L) is an ultra-light-weight pneumatic drill which makes it a winner in mines with confined spaces for operators. It has been the proven choice for years when it comes to small jobs and confined angles for the operator. The Atlas Copco RH 571 5Lsinker drill also has extremely low air consumption. The operation is made very comfortable with its low weight and T-grip handles. It has a built-in air-flushing system to remove chips and prevent drill jamming. Benefits
|
DESCRIPTION |
|
GBD12T Sinker Drill (also known as "Perforadora Sinker" in Spanish) (Equivalent to BBD 12T Sinker Drill) is light and easy to handle, ideal for those quick jobs and for working in difficult-to-get-to areas. The ratchet-wheel action provides faster rotation and higher impact frequency for drilling in soft to medium-hard rock. Equipped with "T" handles, the GBD12T is designed for vertical drilling of up to 2 meters. Benefits
|
DESCRIPTION |
|
The GBD12D-1 Sinker Rock Drill (also known as "Perforadora Sinker" in Spanish) is a 20-lb class lightweight handheld pneumatic rock drill specially designed to be the top choice when portability is key. It comes with a D-type handle for easy horizontal drilling in tight spaces. It has a high impact rate of 2580 BPM and a high penetration rate. It is ideal for horizontal drilling, anchor drilling, wedge drilling, plug hole drilling, and drilling in concrete. Benefits
|
DESCRIPTION |
|
GSM90 - DSI Rock Drill (also known as "Perforadora DSI" in Spanish) is probably the best pneumatic drilling hammer on the market. Suitable for any kind of drilling machine. The noise reduction system set is available to be attached. High-quality spare parts and low maintenance make it the best seller on the market. Benefits
|
DESCRIPTION |
|
GSM100 - DSI Rock Drill (also known as "Perforadora DSI" in Spanish) - New generation, more power. Drills 30% more than GSM90. An outstanding combination of power and smoothness, making it a reliable pneumatic hammer. Suitable to any kind of drilling machine. Extremely fast and low maintenance makes it a top choice for those who want to increase their production. Benefits
|
DESCRIPTION |
|
G94DSI DSI Rock Drill (also known as "Perforadora DSI" in Spanish) is an ideal rock drill for dimensional stone industries (drilling marble and granite) The drill is designed especially for use in the dimension stone industry to be mounted on a drilling rig for drilling holes of 27 – 41 mm. This is a well-proven and comes with an H22 chuck and air flushing as standard. Water flushing is available as an option. The machines can be equipped with cable or chain feeds, subject to the design of the rig. Our stringent quality control of materials and the manufacturing process provides you consistently high performance, reliability and long service life. Benefits
|
DESCRIPTION |
|

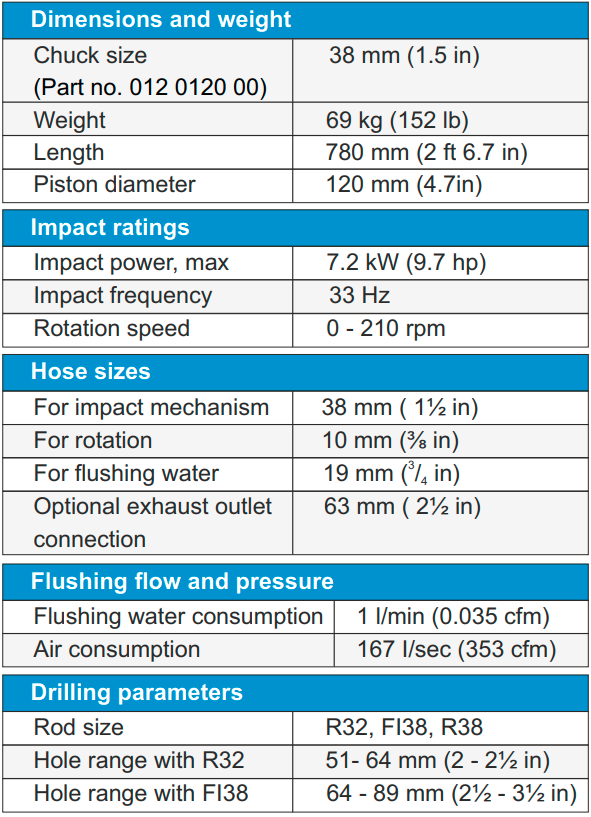

The G120F pneumatic drifter (also known as "Drifter Neumatico" in Spanish) (Equivalent to BBC 120F Atlas Copco Drifter) is a heavy-duty rockdrill suitable for both surface & underground applications such as drifting, tunneling, and also bench and production drilling. It has a bidirectional rifle-bar rotational mechanism that allows easy switching from engage-disengage. It comes with built-in air and water flushing, which can be switched from one another easily by a remote control unit. Facility hoses can be attached on either side as per operation requirements. Benefits
|
DESCRIPTION |
|
The GME GEX1 (also known as "Drifter Hidraulicos" in Spanish) hydraulic drifter is a powerful yet compact hydraulic percussive top hammer rock drill. It has a low profile height and comes with built-in air flushing (water flushing optional). It is specially designed for use with a drilling rig in heavy-duty horizontal drilling applications. These applications include foundation drilling, road cutting, trenching, bolting and line drilling in dimensional stone quarries. Biodegradable oils can be used for both hydraulics and in-shank lubrication to reduce the environmental impact. Benefits
|
DESCRIPTION |
|
The GEX1210 paving breaker (also known as "martillo neumático" in Spanish) (Equivalent to CP 1210 Chicago Pneumatic Paving Breaker) is a champion in the field of road surfaces, light demolition on floors, pavements, utility and plant maintenance, bridge deck jobs, light to medium construction and other surface jobs. Its reversible piston with lubrication grooves and tuned valve system maximizes productivity, prolongs service life, and minimizes downtime. Despite its lightweight, the GEX1210 paving breaker offers heavyweight performance. Different applications are achievable with the help of a variety of shank sizes. Benefits
|
DESCRIPTION |
|
The GEX1210-1 paving breaker (also known as "martillo neumático" in Spanish) is a champion in the field of road surfaces, light demolition on floors, pavements, utility and plant maintenance, bridge deck jobs, light to medium construction and other surface jobs. Its reversible piston with lubrication grooves and tuned valve system maximizes productivity, prolongs service life, and minimizes downtime. Despite its lightweight, the GEX1210-1 paving breaker offers heavyweight performance. Different applications are achievable with the help of a variety of shank sizes. Benefits
|
DESCRIPTION |
|
The GEX1230 paving breaker (also known as "martillo neumático" in Spanish) (Equivalent to CP 1230 Paving Breaker) is the heavyweight counterpart of the GEX1210 paving breaker. It is equipped with heavy-duty front head springs and is applicable for tough construction and plant maintenance work, heavy road work, breaking reinforced concrete and other general demolition work. The GEX1230 has a reversible piston, lubrication grooves, and a tuned valve system to extend productivity, prolong service life, and minimize service costs and downtime. Benefits
|
DESCRIPTION |
|
The GEX1230-1 paving breaker (also known as "martillo neumático" in Spanish) is the heavyweight counterpart of the GEX1210 paving breaker. It is equipped with heavy-duty front head springs and is applicable for tough construction and plant maintenance work, heavy road work, breaking reinforced concrete and other general demolition work. The GEX1230-1 has a reversible piston, lubrication grooves, and a tuned valve system to extend productivity, prolong service life, and minimize service costs and downtime. Benefits
|
DESCRIPTION |
|
The GEX1240 pneumatic breaker (also known as "martillo neumático" in Spanish) (Equivalent to CP 1240 Paving Breaker) is a 90-lb class demolition tool for a variety of heavy-duty construction applications including demolition of reinforced concrete, frozen ground, asphalt, boulders, and pavement. It has a rugged design consisting of a four-bolt robust backhead, integral oiler system, and reversible piston design to prolong drill life and reduce maintenance costs. The paving breaker also comes equipped with a heavy-duty fronthead spring and air inlet swivel for increased ergonomics and operator comfort. BenefitsIdeal for heavy-duty breaker applications including demolition of reinforced concrete, frozen ground, asphalt, boulders, and pavement |
DESCRIPTION |
|
The GEX1240-1 pneumatic breaker (also known as "martillo neumático" in Spanish) is a 90-lb class demolition tool for a variety of heavy-duty construction applications including demolition of reinforced concrete, frozen ground, asphalt, boulders, and pavement. It has a rugged design consisting of a four-bolt robust backhead, integral oiler system, and reversible piston design to prolong drill life and reduce maintenance costs. The paving breaker also comes equipped with a heavy-duty fronthead spring and air inlet swivel for increased ergonomics and operator comfort. Benefits
|
DESCRIPTION |
|
The GEX117 (also known as "martillo neumático" in Spanish) (Equivalent to CP 117 Paving Breaker) is useful for heavy breaker situations. It’s low air consumption and low weight results in a high blow impact output. The drill has an integrated oiling system and is available in a variety of two shank sizes. Benefits
|
DESCRIPTION |
|
The GEX117L (also known as "martillo neumático" in Spanish) (Equivalent to CP 117L Paving Breaker) is useful for heavy breaker situations. It’s low air consumption and low weight results in a high blow impact output. The drill has an integrated oiling system and is available in a variety of two shank sizes. Benefits
|
DESCRIPTION |
|
The GME GEX09P/ GEX09PR - Pick Hammer (also known as "Martillo Picadore" in Spanish) (Equivalent to Atlas Copco TEX 09 PS Pick Hammer) is a lightweight and versatile pneumatic hammer. It comes with a D-type handle for easy maneuverability and to enable operators to reach tight spaces at challenging orientations. It also has a built-in air cushioning system to reduce drill vibration and prolong drill life by eliminating metal-to-metal contact. The effective silencer reduces noise emission to meet international noise directive standards. The two-step trigger helps keep the chisel in place for precise cuts. GME offers the GEX09P/ GEX09PR with both hexagonal & round chucks to suit customer requirements. Benefits
|
DESCRIPTION |
|
The GEX12PS pneumatic pick hammer (also known as "Martillo Picadore" in Spanish) is a lightweight and versatile pneumatic hammer. It comes with a D-type handle for easy maneuverability and to enable operators to reach tight spaces at challenging orientations. It also has a built-in air cushioning system to reduce drill vibration and prolong drill life by eliminating metal-to-metal contact. The effective silencer reduces noise emission to meet international noise directive standards. The two-step trigger helps keep the chisel in place for precise cuts. Benefits
|
DESCRIPTION |
|
The GME GL33 pick hammer (also known as "Martillo Picadore" in Spanish) is an extremely lightweight pneumatic hammer for horizontal & angular drilling in hard-to-reach areas. It is also equipped with a D-type aluminum handle for easy maneuverability. Benefits
|
DESCRIPTION |
|
The GME GL37 pick hammer (also known as "Martillo Picadore" in Spanish) is a heavier version of the GL33 pneumatic hammer. It is also aimed at horizontal & angular drilling in hard-to-reach areas and comes equipped with a D-type handle for easy maneuverability. Benefits
|
DESCRIPTION |
|
The GME GL100 lubricator (also known as "Lubricadora" in Spanish) is the go-to choice for heavy-duty applications. With a volume of 5 litres, GL100 can cater to high lubrication requirements with ease. GME always recommends using inline lubrication with pneumatic rockdrills to increase their service life. Benefits
|
DESCRIPTION |
|
The GME GL50 Lubricator (also known as "Lubricadora" in Spanish) is a JOY football-style lubricator that is the proven choice across the world and is the market leader in North & South America. GME always recommends using inline lubrication with rock drills to reduce tool wear and prolong its service life. Benefits
|
DESCRIPTION |
|
The GME GL30 lubricator (also known as "Lubricadora" in Spanish) (Equivalent to Atlas Copco BLG 30 Lubricator) is a versatile 1.3 ltr lubricator used for inline lubrication in a variety of jackhammers. GL30 offers a precise oil regulator and has a rugged design for GME strongly advises inline lubrication to reduce wear and increase drill life. Benefits
|
DESCRIPTION |
|
GME offers a wide range of rock drilling tools including shank adapters (striking bars) and coupling sleeves. Made from premium raw materials, these shank adapters & coupling sleeves fulfill the highest quality standards after going through sealed-quench heat treatment and precision grinding. These shank adapters and coupling sleeves come in a wide range of industry-standard thread configurations to work with the following hydraulic drifters, pneumatic drifters and top hammers. |
DESCRIPTION |
|
Long hole drilling rods are available in male-male and male-female options. |
DESCRIPTION |
|
Made from high-quality alloy steel, GME Rock Tools Accessories are manufactured to provide optimal wear resistance, and strength. A full range of accessories is available to maintain a high level of productivity. The product line includes bit adopters, guide adopters, and coupling sleeves (semi-bridge, full-bridge, or conversion types) with all popular international thread forms.
|
DESCRIPTION |
|
Made from high-quality alloy steel, GME Split Sets and Bolt Drivers are manufactured to provide optimal wear resistance, strength. Full range is available to maintain a high level of productivity. The product line includes Split Set, Split Set Driver, Shank Driver and One Piece Driver.Split Set
Benefits
|
DESCRIPTION |
|
GME manufactures a wide range of high-quality Contractors Tools to fit most types of Paving Breaker Machines, Chipping Hammers and Pick Hammers. The tools have been developed for all applications, including Road Breaking, Asphalt Cutting, Digging, Trenching and Demolition work. Benefits
|
Construction, an industry synonymous with progress and development, relies heavily on an array of specialized tools and equipment. The evolution of construction tool manufacture has played a pivotal role in enhancing efficiency, precision, and safety across various construction sites. Let’s delve into the core tools that define the construction landscape, exploring their significance and impact on the industry.
1. Pickhammers: The Versatile Workhorse
One of the foundational tools in construction, pickhammers, combines the functions of a pick and a hammer. Its versatility allows professionals to break through hard surfaces, making it indispensable for excavation and demolition tasks.
2. Rock Drills: Powering Through Solid Foundations
Rock drills are essential for drilling into hard surfaces like concrete and rock. They provide the necessary power and precision required for creating holes and channels in tough materials, facilitating various construction processes.
3. Concrete Mixers: Blending Strength and Consistency
Manufactured for efficiency, concrete mixers play a crucial role in blending cement, aggregate, and water uniformly. Their precision ensures consistent concrete quality, vital for sturdy foundations and structures.
4. Power Saws: Precision in Cutting
From circular saws to band saws, power saws offer precision in cutting materials like wood, metal, or concrete. Their accuracy and efficiency streamline tasks like shaping, sizing, and trimming materials on construction sites.
5. Levels: Ensuring Accurate Alignment
Levels are fundamental tools for maintaining accurate alignments and ensuring the evenness of surfaces. Their role in establishing precise angles and measurements cannot be overstated in the construction process.
6. Scaffolding: Supporting Progress
While not a hand tool, scaffolding is integral to construction. Manufactured with safety and accessibility in mind, it provides a stable platform for workers, aiding in reaching heights and carrying out tasks efficiently.
7. Tape Measures: Precision in Measurement
A quintessential tool in any construction toolkit, tape measures ensure accurate measurements for materials, distances, and dimensions, contributing to the precision and quality of the final construction.
Embracing Innovation in Construction Tools Manufacture
The construction industry’s efficiency and progress rely significantly on the continual innovation and manufacturing advancements in tools and equipment. From the sturdy reliability of pick hammers to the precision-driven rock drills, each tool contributes uniquely to the seamless execution of construction projects.
When it comes to construction projects, having the right set of tools is akin to possessing a craftsman’s magic wand. From shaping landscapes to erecting towering structures, each tool plays a pivotal role in achieving excellence. In this guide, we’ll explore the top 10 must-have tools, essential for project success, including specialized equipment vital for underground construction and mining services.
Fundamental for tunneling and excavation, rock drills are the workhorses of underground construction. These robust tools power through solid rock, allowing precision drilling and blasting to create pathways and chambers.
An indispensable tool for miners, jackleg drills provide portability and power, enabling efficient drilling in tight spaces or challenging terrains. Their versatility makes them vital for creating holes and anchor points in mines and tunnels.
Also known as demolition hammers, these heavy-duty tools excel in breaking up concrete, asphalt, and other solid surfaces. In construction, they’re crucial for site preparation and demolition tasks.
These mechanical giants are the backbone of any construction project, effortlessly moving large quantities of earth and debris. Their adaptability and various attachments make them versatile across different phases of construction.
Essential for mixing and pouring concrete, these machines ensure consistency and quality in construction. From small-scale projects to large developments, they’re vital for creating sturdy foundations.
Precision cutting is a cornerstone of construction, and circular saws deliver just that. From timber to metal, these tools provide accurate cuts, crucial for framing and shaping materials.
Ensuring precision in construction, levels and laser measuring tools guarantees accuracy in alignments, elevations, and measurements, ultimately leading to structurally sound buildings.
Personal protective equipment (PPE) is non-negotiable in construction. Hard hats, gloves, goggles, and sturdy boots are essential to safeguard workers against potential hazards.
Versatile and efficient, power drills are indispensable for various tasks, from driving screws to drilling holes. Cordless models offer mobility and ease of use on-site.
Often overlooked but crucial, efficient storage solutions keep tools safe, organized, and easily accessible, improving workflow efficiency.
Having these top 10 tools at your disposal empowers construction teams to tackle projects with confidence and precision, ensuring timelines are met and quality is maintained.
